Is there something like a tooltip for modelling elements?

Vista combinada Visió plana Vista en arbre
Fils [ Anterior | Següent ]
toggle
Dear ADOxx Team!

I would like to know if ADOxx allows to create tooltips like e.g. shown in the figure below. I want to create two classes A and B. If the mouse is over an instance of class A the toolkit should appear with a symbol of the class B. By clicking on the symbol of class B an instance of the class B should be created.

Kind regards
Adjunt

Adjunts: Unbenannt.png (35,6k)

RE: Is there something like a tooltip for modelling elements?
Resposta
17/08/16 11:16 com a respotat a Anònim.
Hi,

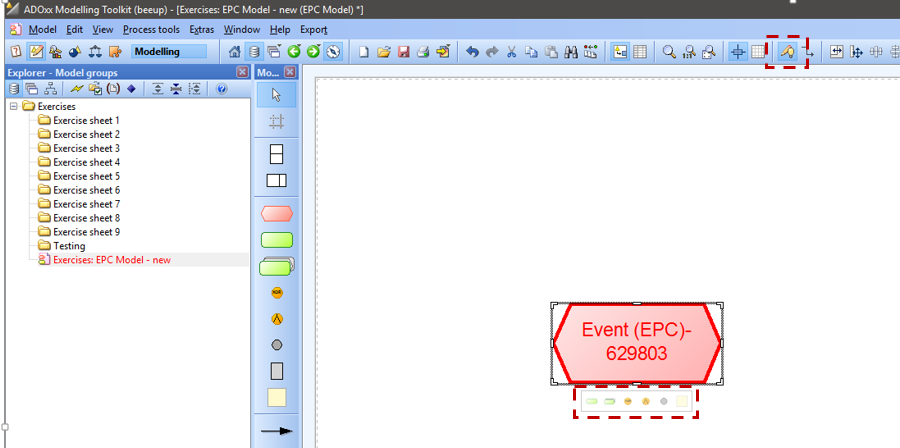

this is available in ADOxx as a platform functionality called "Modelling Assistant". You can activate the functionality by clicking on the icon in the modelling toolkit. The functionality interprets the metamodel and provides the selection capabilities. The assitant enables the creation of objects on every side of the source.
Have a look at the screenshot attached.
Adjunt

Adjunts: modelling_assistant2.PNG (118,7k)
