How to move model elements automatically to the background layer?

Αποψη συνδυασμού Επίπεδη άποψη Αποψη δέντρων
Νήματα [ Προηγούμενο | Επόμενο ]
toggle
How to move model elements automatically to the background layer?
development tools adoxx
Απάντηση
15/6/2019 11:30 πμ
Hello,

As i want to edit the elements wihin a frame it would be very helpful that container/frame elements are automatically placed in the background layer.
Otherwise i will have to do that manualy.

Is it possible to place elements of a specified class always in the background layer?

Thank you for your help.

BR
Martin

(Version: ADOxx 1.5)

RE: How to move model elements automatically to the background layer?
Απάντηση
18/3/2020 5:06 μμ as a reply to Martin Paczona.

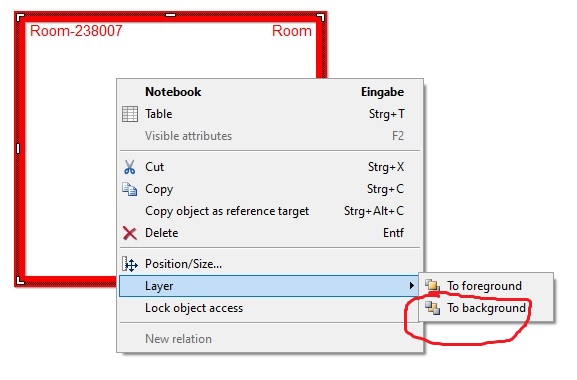

To be more precise i want to perform the to background fuctionality (Layer -> to background) over ADOxscript
Is there really no way to do that?

Thank you.
Σύνδεση

Επισυνάψεις: background.jpg (42,5k)

RE: How to move model elements automatically to the background layer?
Απάντηση
11/2/2021 9:27 πμ as a reply to Martin Paczona.
Dear Martin,

this can be achieved for all newly created elements by specifying the layer attribute in GRAPHREP with a negative value like this:

1CLASSATTRIBUTE <GraphRep>
2  VALUE "GRAPHREP layer:-1 sizing:asymmetrical ... "

Sincerely,
Vladimir Shekhovtsov

RE: How to move model elements automatically to the background layer?
graphrep layout toolkit
Απάντηση
19/2/2021 9:05 μμ as a reply to Vladimir Shekhovtsov.
Thank you this is exactly what i needed.

Defining it  in the Development Tookit within the GRAPHREP the code looks following:
GRAPHREP layer:-1 sizing:asymmetrical

BR
Martin
