Include class derived from __D_swimlane__

Include class derived from __D_swimlane__	Ανώνυμος	27/3/2014 12:13 μμ
RE: Include class derived from __D_swimlane__	Sabin Popescu	9/7/2013 12:52 μμ
RE: Include class derived from __D_swimlane__	Natalia Sudakova	31/10/2013 1:08 μμ
RE: Include class derived from __D_swimlane__	Sabin Popescu	27/11/2013 9:42 πμ

Ανώνυμος	Include class derived from __D_swimlane__ community class documentation Απάντηση 27/3/2014 12:13 μμ I have created a new class, derived from the abstract class __D_swimlane__ and included it in a model type, but when I open the ADOxx Modelling Toolkit, the class is not available for modelling. What should I configure for being able to use this class?
	Σημάδι μέσα στην ψηφοφορία. Κορυφή

Sabin Popescu Σειρά Κατάταξης: Junior Member Θέσεις: 77 Ενώστε την ημερομηνία: 18/3/2013 Πρόσφατες θέσεις	RE: Include class derived from __D_swimlane__ Απάντηση 9/7/2013 12:52 μμ as a reply to Ανώνυμος. Please note that all classes derived from the abstract class __D_swimlane__ must be included in a MODE. Although all other classes and relation classes are displayed even if no MODE is defined, you must define at least one mode if you want to use a class derived from the __D_swimlane__. The piece of code below exemplifies the definition of a standard mode for the model type "Sample" (class Swimplane_Vertical has been derived from class __D_swimlane__): 1MODELTYPE "Sample" from:none plural:"Samples" pos:1 2INCL "A" 3INCL "B" 4INCL "C" 5INCL "Swimlane_Vertical" 6INCL "any2any" 7 8MODE "Standard" from: all
	Σημάδι μέσα στην ψηφοφορία. Κορυφή

Natalia Sudakova

Σειρά Κατάταξης: New Member

Θέσεις: 8

Ενώστε την ημερομηνία: 15/4/2013

Πρόσφατες θέσεις

RE: Include class derived from __D_swimlane__

Απάντηση

31/10/2013 1:08 μμ as a reply to Sabin Popescu.

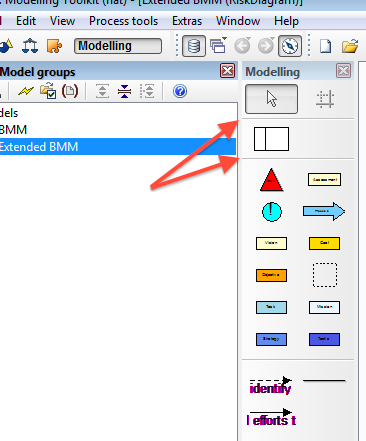

Thank you for your reply, Sabin, it really helped. I have further question: the swimlane class is displayed in the "Modelling" toolbar of the modelling tool as a separate group (see picture). How can I do the same to group other elements? Is it possible to give a (viewable) name to such a "group"?

Επισυνάψεις:


Σημάδι μέσα στην ψηφοφορία.

Κορυφή

Sabin Popescu Σειρά Κατάταξης: Junior Member Θέσεις: 77 Ενώστε την ημερομηνία: 18/3/2013 Πρόσφατες θέσεις	RE: Include class derived from __D_swimlane__ Απάντηση 27/11/2013 9:42 πμ as a reply to Natalia Sudakova. The current version of ADOxx does not allow customizable grouping of objects in the Modelling toolbar. There is the predefined grouping of modelling items into classes, relation classes and classes derived from the abstract class __D_swimlane__ . An alternative would be defining subgroups of classes of your modeltype usind the element MODE in the library attribute Modi. A description of how to use the MODE element can be found in the following thread: http://www.adoxx.org/live/faq/-/message_boards/view_message/20030#_19_message_20017
