Is there something like a tooltip for modelling elements?
Odpoveď
17.8.2016 8:20
Dear ADOxx Team!

I would like to know if ADOxx allows to create tooltips like e.g. shown in the figure below. I want to create two classes A and B. If the mouse is over an instance of class A the toolkit should appear with a symbol of the class B. By clicking on the symbol of class B an instance of the class B should be created.

Kind regards
Príloha

Prílohy: Unbenannt.png (35,6k)

RE: Is there something like a tooltip for modelling elements?
Odpoveď
17.8.2016 11:16 ako reakcia na Anonym.
Hi,

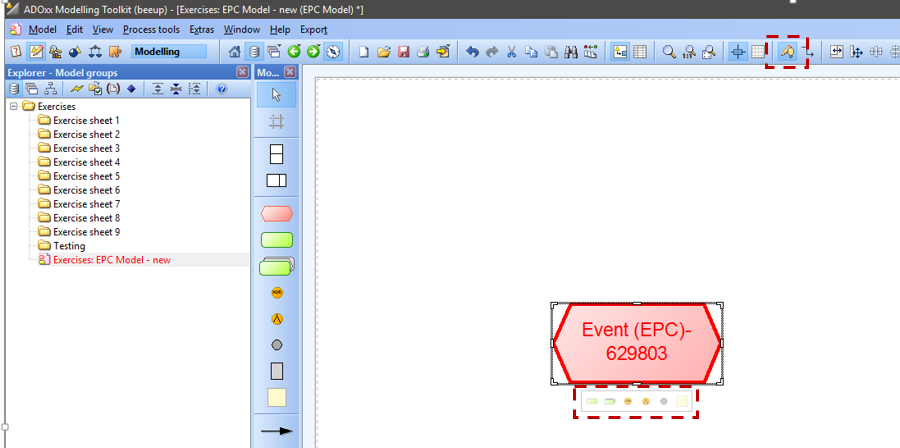

this is available in ADOxx as a platform functionality called "Modelling Assistant". You can activate the functionality by clicking on the icon in the modelling toolkit. The functionality interprets the metamodel and provides the selection capabilities. The assitant enables the creation of objects on every side of the source.
Have a look at the screenshot attached.
Príloha

Prílohy: modelling_assistant2.PNG (118,7k)
