Change GraphRep based on count
Odpoveď
1.12.2016 13:35
Hello
I have a modelling element, which should change it's appearance based on how many checkboxes are checked while each checkbox is an attribute (enumeration). When adding the modelling element to a new model in the modelling toolkit, the initial shape has to be shown (without any checkboxes checked). Whenever the user does changes on the checkbox, the appearance shall change.
Is there any script or anything available to solve this? GraphRep code for each of the different "states" is available.
Thanks and best regards,
Pascal
Prihláste sa, ak chcete hlasovať.
Top
Pascal Sibold
Hodnosť:
New Member
Príspevky:
13
Dátum nástupu:
13.11.2016
Najnovšie príspevky
RE: Change GraphRep based on count
Odpoveď
1.12.2016 14:07 ako reakcia na Pascal Sibold.

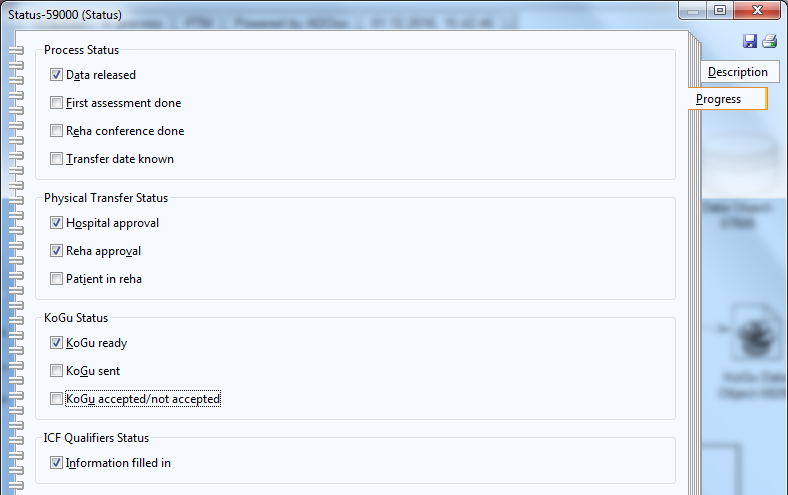

Here an example of the checkboxes on the element:
Prílohy:
(85,5k)
Prihláste sa, ak chcete hlasovať.
Top
Anonym
RE: Change GraphRep based on count
Odpoveď
5.12.2016 12:00 ako reakcia na Pascal Sibold.
Dear Pascal,
One way to do this is to include files with the GraphRep Code depending on the values of the attributes.
For an example I will take the second group “Physical Transfer Status”.
In the AttrRep you have the following attributes:
GROUP "Physical Transfer Status"
ATTR "Hospital approval" ctrltype:check checked-value:"Yes" unchecked-value:"No"
ATTR "Reha approval" ctrltype:check checked-value:"Yes" unchecked-value:"No"
ATTR "Patient in reha" ctrltype:check checked-value:"Yes" unchecked-value:"No"
ENDGROUP
To achieve the change of the appearance depending on checked boxes you can operate with If...Else statements. The GraphRep of your modelling element could look as follows:
GRAPHREP
AVAL hoap:"Hospital approval"
AVAL reap:"Reha approval"
AVAL painre:"Patient in reha"
IF (hoap="Yes" AND reap="Yes" AND painre="Yes") {
@INCLUDE "db:\\appearance1_GraphRep.leo"
}
ELSIF (hoap="No" AND reap="Yes" AND painre="Yes") {
@INCLUDE "db:\\appearance2_GraphRep.leo"
}
ELSE {
@INCLUDE "db:\\appearance3_GraphRep.leo"
}
I hope I could help.
Prihláste sa, ak chcete hlasovať.
Top
Pascal Sibold
Hodnosť:
New Member
Príspevky:
13
Dátum nástupu:
13.11.2016
Najnovšie príspevky
RE: Change GraphRep based on count
Odpoveď
5.12.2016 13:48 ako reakcia na Anonym.
Hello
I also solved it myself today with nearly the same solution but yours is even better with referencing to the .leo file only.
Thanks a lot!
Regards,
Pascal
Prihláste sa, ak chcete hlasovať.
Top
Pascal Sibold
Hodnosť:
New Member
Príspevky:
13
Dátum nástupu:
13.11.2016
Najnovšie príspevky
RE: Change GraphRep based on count
Odpoveď
5.12.2016 15:42 ako reakcia na Pascal Sibold.
If there is a solution, which scales better (e.g. on count of amount of clicked checkboxes), I would still be interested. For the example with the checkboxes I have shown, there are just too many possibilities.
