Is there something like a tooltip for modelling elements?

Xem kết hợp Flat Xem Xem cây
Luồng thảo luận [ Trước | Tiếp theo ]
toggle
Is there something like a tooltip for modelling elements?
Câu trả lời
08:20 17/08/2016
Dear ADOxx Team!

I would like to know if ADOxx allows to create tooltips like e.g. shown in the figure below. I want to create two classes A and B. If the mouse is over an instance of class A the toolkit should appear with a symbol of the class B. By clicking on the symbol of class B an instance of the class B should be created.

Kind regards
Đính kèm

Các đính kèm: Unbenannt.png (35,6k)

RE: Is there something like a tooltip for modelling elements?
Câu trả lời
11:16 17/08/2016 gửi bài phản hồi tới Cho phép người dùng chưa đăng ký.
Hi,

this is available in ADOxx as a platform functionality called "Modelling Assistant". You can activate the functionality by clicking on the icon in the modelling toolkit. The functionality interprets the metamodel and provides the selection capabilities. The assitant enables the creation of objects on every side of the source.

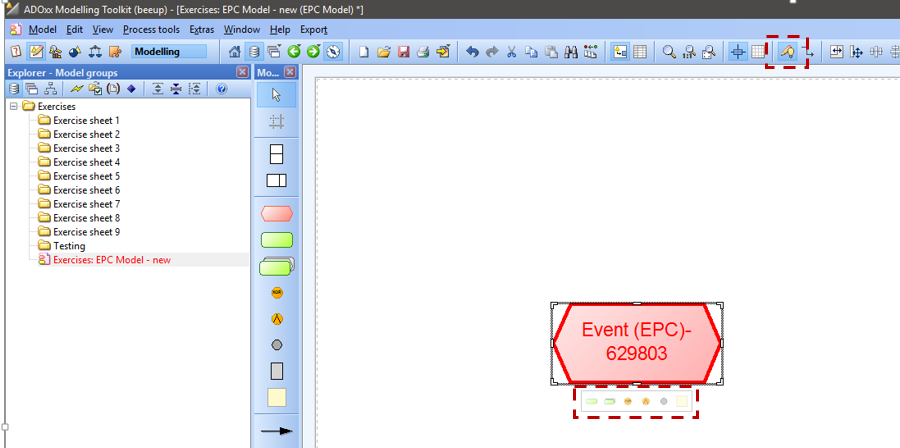

Have a look at the screenshot attached.
Đính kèm

Các đính kèm: modelling_assistant2.PNG (118,7k)
