Is there something like a tooltip for modelling elements?

Kombinasjonsvisning Flat visning Trådet visning
Tråder [ Forrige | Neste ]
toggle
Is there something like a tooltip for modelling elements?
Svar
17.08.16 08:20
Dear ADOxx Team!

I would like to know if ADOxx allows to create tooltips like e.g. shown in the figure below. I want to create two classes A and B. If the mouse is over an instance of class A the toolkit should appear with a symbol of the class B. By clicking on the symbol of class B an instance of the class B should be created.

Kind regards
Vedlegg

Vedlegg: Unbenannt.png (35,6k)

RE: Is there something like a tooltip for modelling elements?
Svar
17.08.16 11:16 Postet som et svar til melding #{1} av {2}
Hi,

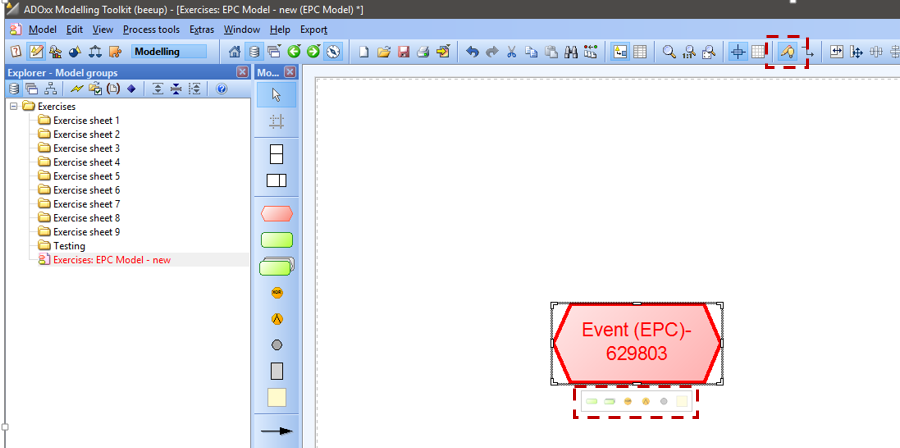

this is available in ADOxx as a platform functionality called "Modelling Assistant". You can activate the functionality by clicking on the icon in the modelling toolkit. The functionality interprets the metamodel and provides the selection capabilities. The assitant enables the creation of objects on every side of the source.
Have a look at the screenshot attached.
Vedlegg

Vedlegg: modelling_assistant2.PNG (118,7k)
