Include class derived from __D_swimlane__

Kombinovaný pohľad Plochý pohľad Stromový pohľad
Témy [ Predchádzajúci | Ďalej ]
toggle
Include class derived from __D_swimlane__
community class documentation
Odpoveď
27.3.2014 12:13
I have created a new class, derived from the abstract class __D_swimlane__ and included it in a model type, but when I open the ADOxx Modelling Toolkit, the class is not available for modelling.
What should I configure for being able to use this class?

RE: Include class derived from __D_swimlane__
Odpoveď
9.7.2013 12:52 ako reakcia na Anonym.
Please note that all classes derived from the abstract class __D_swimlane__ must be included in a MODE. Although all other classes and relation classes are displayed even if no MODE is defined, you must define at least one mode if you want to use a class derived from the __D_swimlane__.
The piece of code below exemplifies the definition of a standard mode for the model type "Sample" (class Swimplane_Vertical has been derived from class __D_swimlane__):

1MODELTYPE "Sample" from:none plural:"Samples" pos:1
2INCL "A"
3INCL "B"
4INCL "C"
5INCL "Swimlane_Vertical"
6INCL "any2any"
7
8MODE "Standard" from: all

RE: Include class derived from __D_swimlane__
Odpoveď
31.10.2013 13:08 ako reakcia na Sabin Popescu.

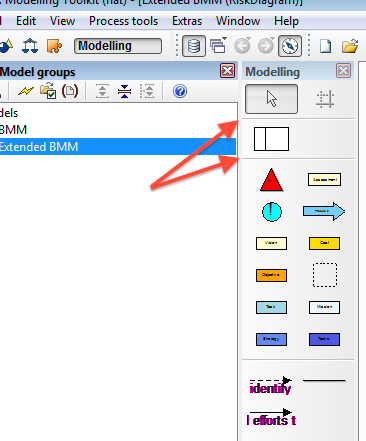

Thank you for your reply, Sabin, it really helped. I have further question: the swimlane class is displayed in the "Modelling" toolbar of the modelling tool as a separate group (see picture). How can I do the same to group other elements? Is it possible to give a (viewable) name to such a "group"?
Príloha

Prílohy: Grouping.png (40,0k)

RE: Include class derived from __D_swimlane__
Odpoveď
27.11.2013 9:42 ako reakcia na Natalia Sudakova.
The current version of ADOxx does not allow customizable grouping of objects in the Modelling toolbar. There is the predefined grouping of modelling items into classes, relation classes and classes derived from the abstract class __D_swimlane__ .

An alternative would be defining subgroups of classes of your modeltype usind the element MODE in the library attribute Modi. A description of how to use the MODE element can be found in the following thread:  http://www.adoxx.org/live/faq/-/message_boards/view_message/20030#_19_message_20017
