Transformation Core ​

The transformation core supports functionality to transform models created in ADOxx into generic formats as an export and also import mechanism. Two formats are supported by the platform:

Generation of ADL ​

Text file in ADOxx Definition Language for exchange of models between ADOxx installations

leo
INSTANCE <E1> : <E>
ATTRIBUTE <Position>
VALUE "NODE x:4cm y:11cm w:2cm h:2cm index:1"
ATTRIBUTE <External tool coupling>
VALUE ""
ATTRIBUTE <a1>
VALUE 0
ATTRIBUTE <a2>
VALUE
ATTRIBUTE <a3>
VALUE ""
ATTRIBUTE <b1>
VALUE 0
ATTRIBUTE <b2>
VALUE
ATTRIBUTE <b3>
VALUE ""
ATTRIBUTE <e1>
VALUE 0
ATTRIBUTE <e2>
VALUE

ADL Export Example

Generation of XML ​

Text file in ADOxx defined XML syntax as a basis for further transformation and exchange

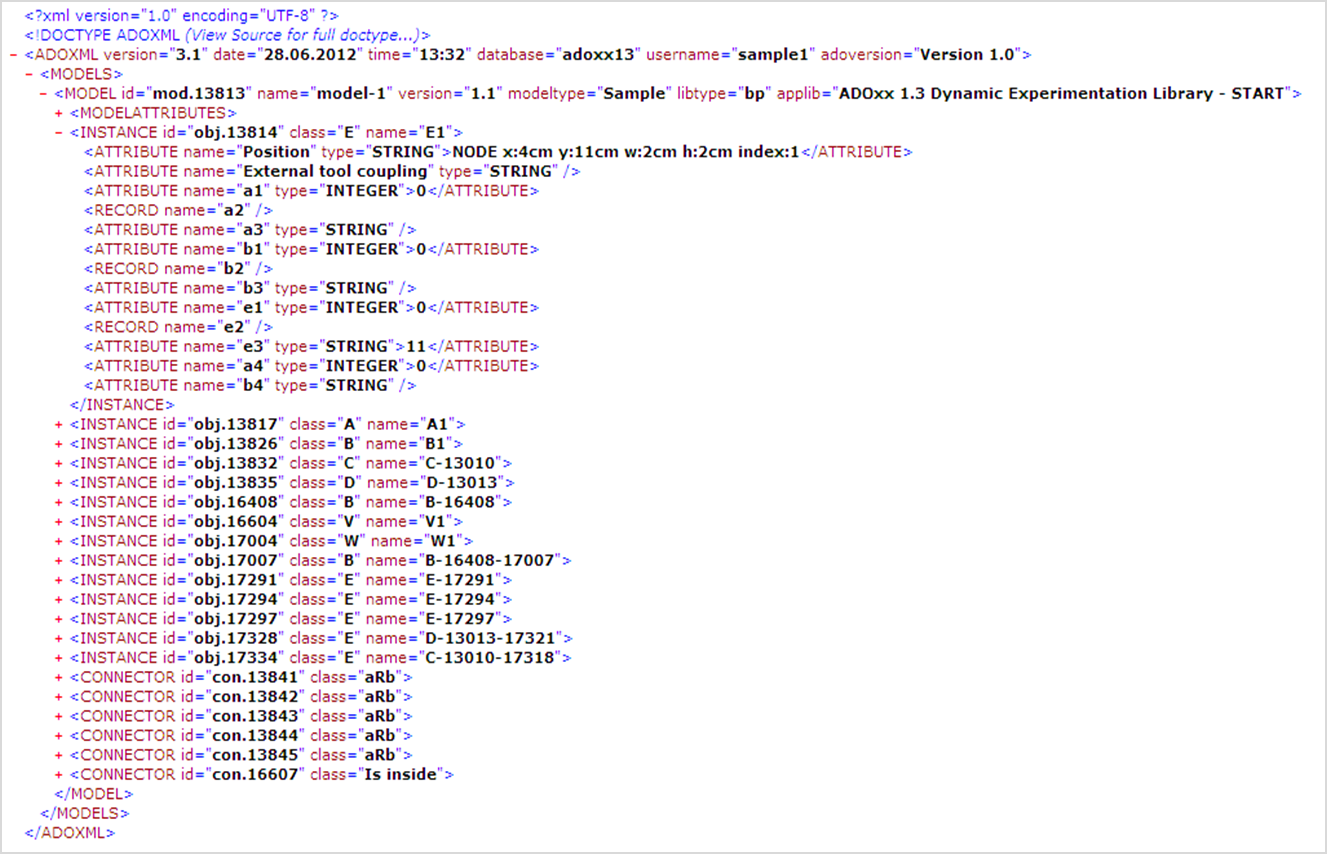

ADOXML_Export_Example

ADOXML Export Example
