XML-ADL Import Export ​
Building upon the platform functionality to export ADL and XML representations of models in a generic format, additional model representation can be created using transformation of the export files. Add-on transformation is supported for XML using the included XSL processor and transformation capabilities of the platform
Example: XML Transformation to XHTML ​

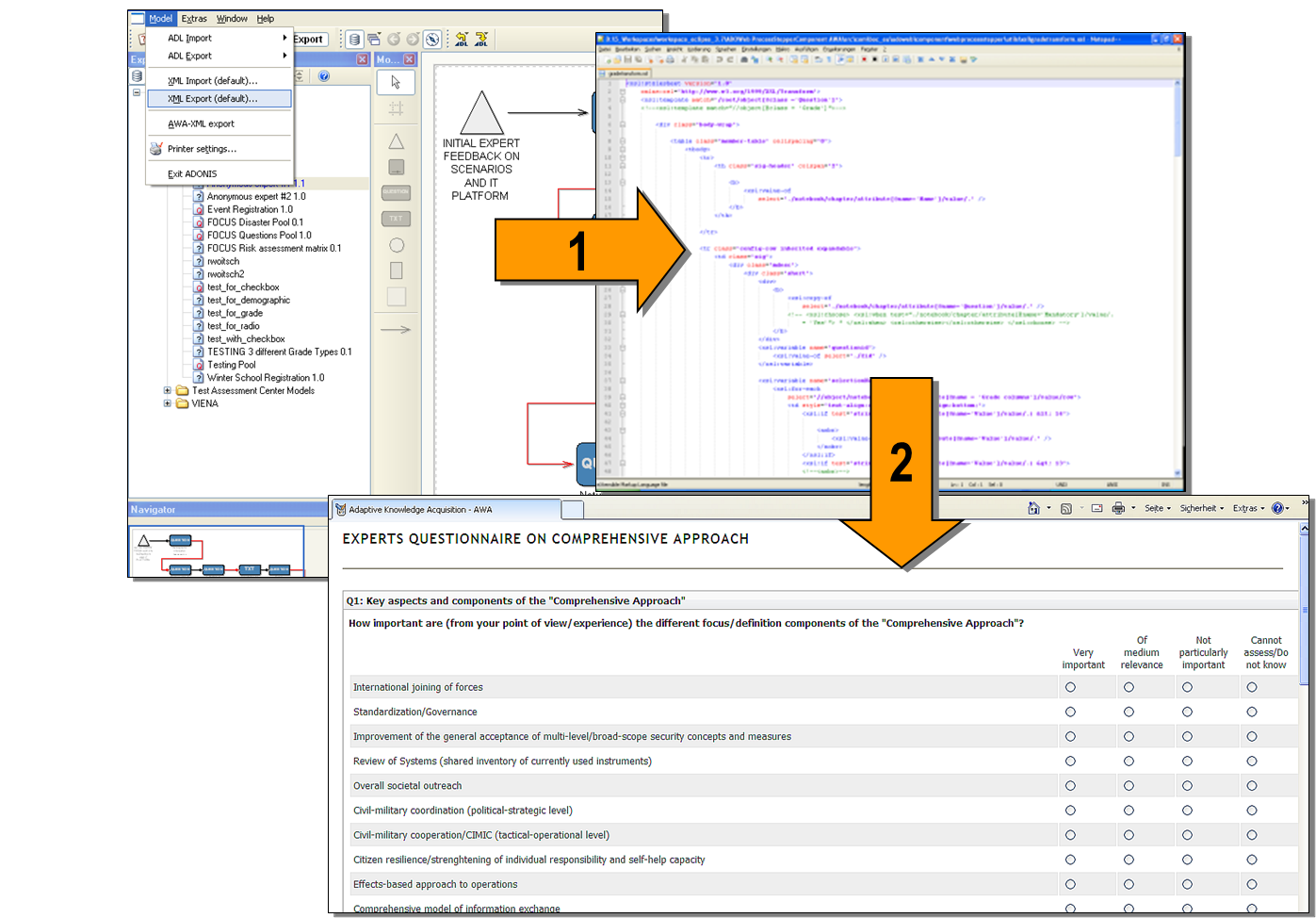

The figure below shows an example implementation to transform model content from the generic ADOXML representation to an interactive XHTML view of the model in the form of a web-based graph animation implementation. This example uses an XSL implementation to produce conformant XHTML files.
Example: XML Transformation
